This wheel base is as close to a real car as you can get. The ClubSport Wheel Base V2.5 is a masterpiece of Germaneering® and sets new standards for performance and reliability. The ClubSport Wheel Base V2.5 is a careful and precise evolution of the highly successful V2. It comes with more advanced electronics and a new motor for improved feeling, functionality and even higher durability.
Choose from a growing selection of very realistic steering wheels in many different styles

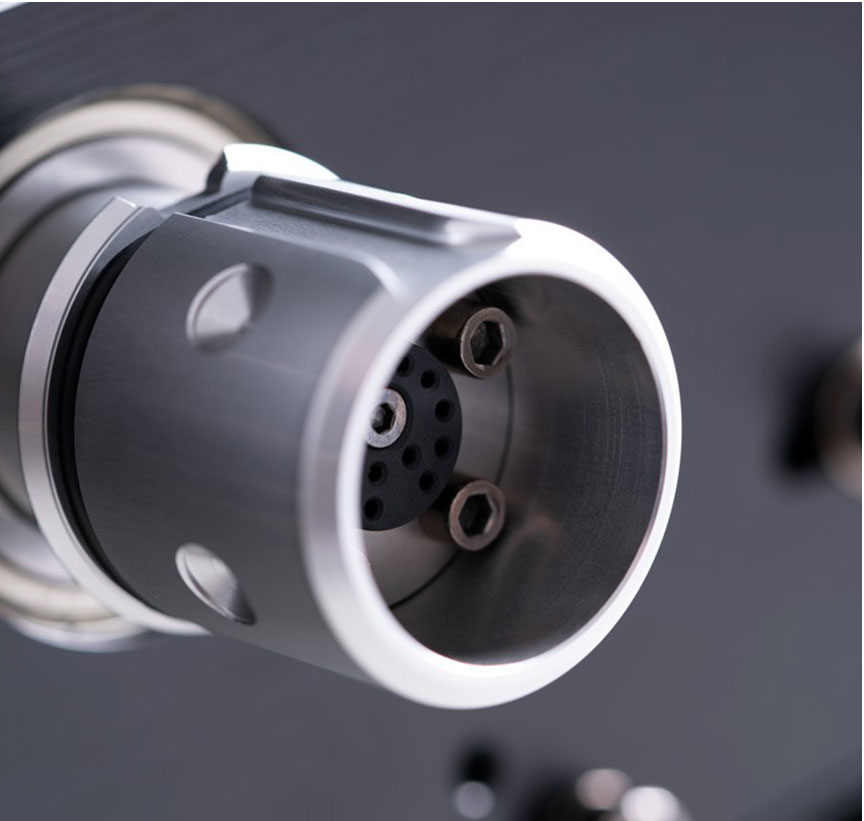

Quick release system allows the easy change of steering wheels within seconds, even during gameplay
Wheel base made of CNC machined aluminum parts with anodized finish
Rock solid: Product weight is 4200 g, product dimensions (l x w x h) 210 mm x 295 mm x 150 mm
DirectSensor™ technology: The sensor is mounted directly on the steering axis to avoid interference and performance issues that are inherent in belt and gear drives that have motor mounted sensor systems
DUAL HALL technology: One Sensor is mounted on the motor and a second one on the axis. It does not get more precise than this.
Ultra strong brushless servo motor
Support for vibration motors in the steering wheel (depending on the steering wheel model)
Cooling system with two big fans (left and back sides) and a huge heat sink on the motor

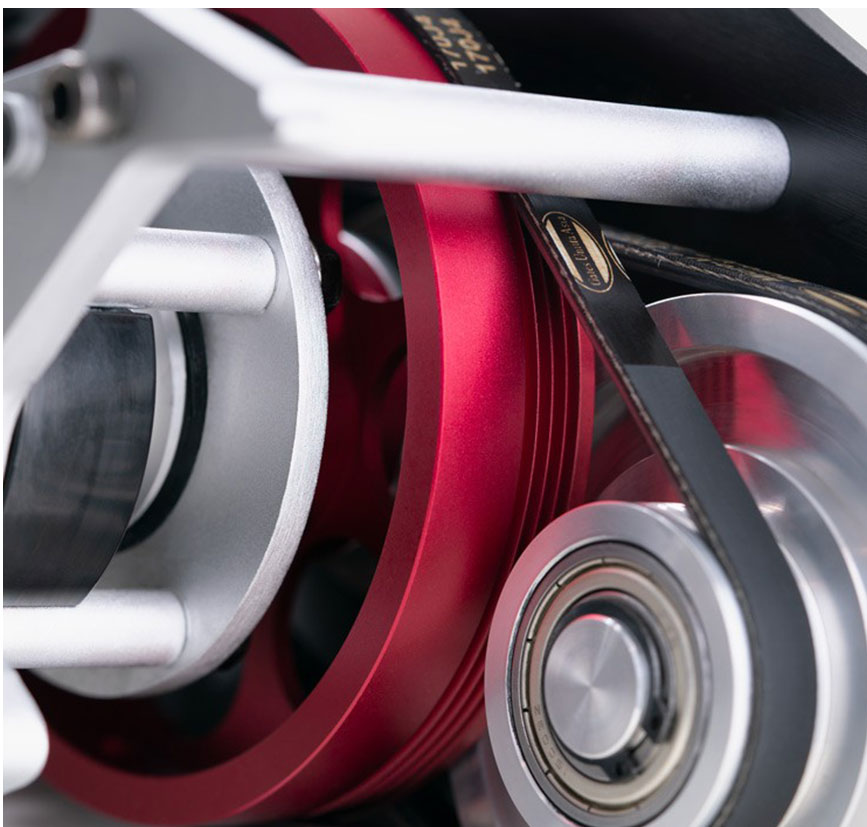

Belt drive mechanism that's made completely of metal and uses high quality ball bearings and European belts to deliver the smoothest, most precise force feedback possible.
High belt tension to avoid any slippage and durable ball bearings to minimize the drag
Mount for ClubSport Static Shifter Paddles and other optional accessories
Firmware can be updated with new features
Motor driver firmware can also be updated
900° of rotation which can be reduced in the tuning menu of the attached ClubSport Steering Wheel
Fast 1000 Hz USB update rate
Allows connection for two external shifters (e.g. H-pattern and sequential) in parallel
Tuning functions* with LED display of the steering wheel to adjust settings independent from the game and during gameplay
Saves up to 5 wheel set-ups
Adjust sensitivity independent from the game. Turning angle can be adjusted in the wheel from 90° to 900°
Adjust force feedback strength during game play
Adjustment for vibration intensity in the steering wheel (depending on the steering wheel model). The vibration motors can be used by a game directly or by the ABS function
Simulate ABS vibration in the steering wheel (depending on the steering wheel model) and on pedals with rumble motor like the ClubSport Pedals V3 by setting a starting point at % of brake input
Advanced Drift Mode can now add a natural damper to avoid oscillation or a negative damper which will speed up the wheel.
Customize the force feedback sensations by changing the spring, force effects and dampening forces
Adjust the brake force sensitivity of compatible loadcell pedals like the ClubSport Pedals V3 or the CSL Elite Pedals LC
* Tuning functions are subject to change.
All Fanatec ClubSport Steering Wheels
All Fanatec CSL Steering Wheels
All Fanatec Pedals
All Fanatec Shifters
All Fanatec Cockpits and Wheel Stands. The drilling pattern is compatible to the Porsche 911 or CSR wheels
PC: This Wheel Base is compatible with PC in combination with all available steering wheels.
Xbox One®: The compatibility can be upgraded with (optional) steering wheels like the ClubSport Steering Wheel Universal Hub for Xbox One or the CSL Steering Wheel P1 for Xbox One. Without any Xbox One® licensed steering wheel attached, the wheel base is NOT compatible to Xbox One®.
PlayStation®: This product is not compatible to any PlayStation® console and cannot be upgraded to achieve compatibility.
Size (L x W x H) : 46.00cm x 28.00cm x 29.00cm
Volume weight: 6.94kg
