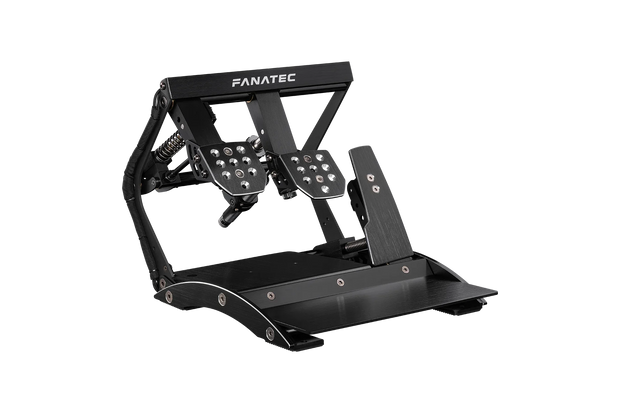

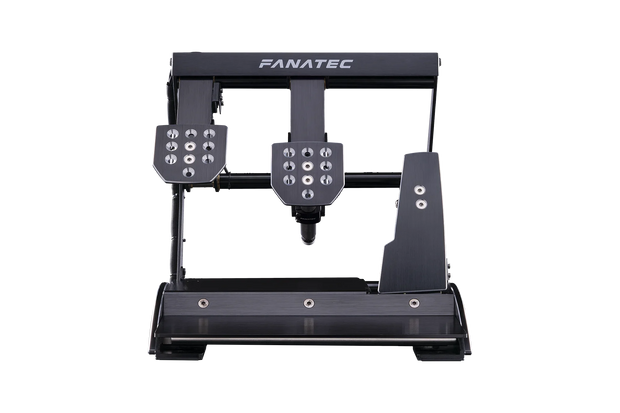

Fanatec Clubsport Pedale V3 Inverted

$699.90

Key Features

Turning points of brake and clutch on top side like in real cars
High resolution pedals with magnetic and contactless sensors on gas and clutch for a long life and maximum performance
Pressure sensitive brake with custom made 90 kg load cell sensor
Adjustable brake stiffness and travel without tools
12-bit resolution (4096 values) on all axis

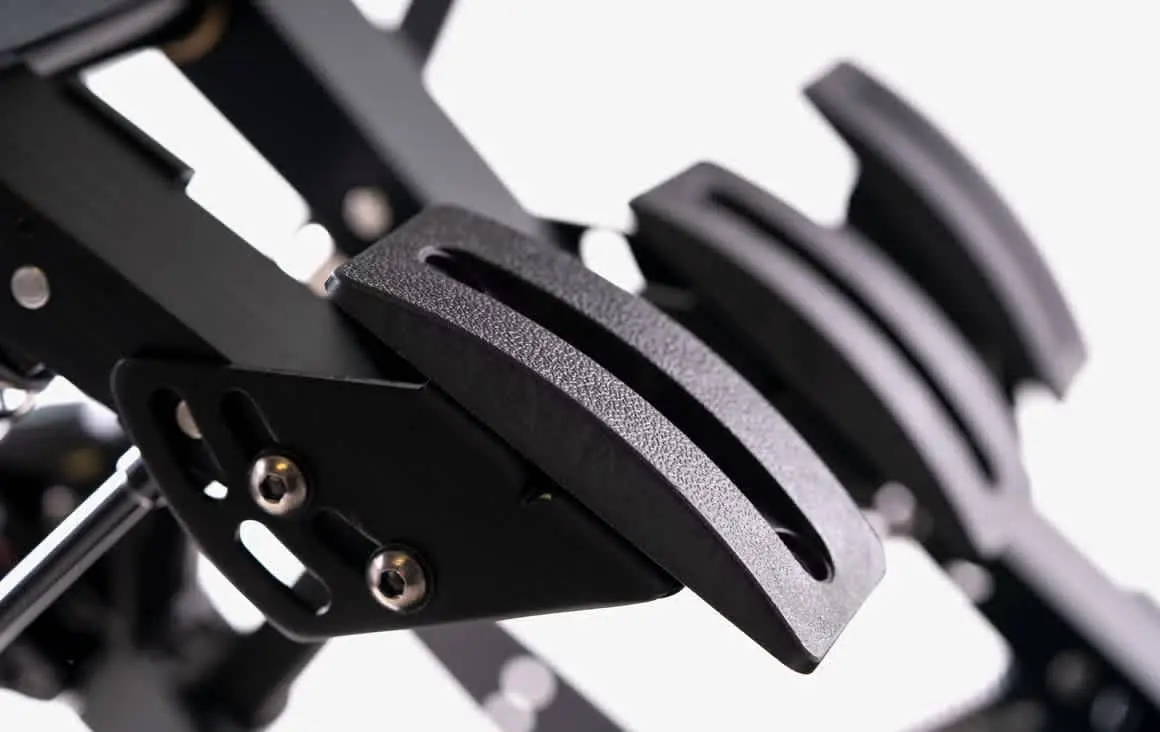

Alternative D-shape race plates in curved design
Pedal extension to adjust the angle of the pedal plate and to change the angle of the whole pedal arm
Brake sensitivity can be adjusted through the Tuning Menu of the wheel and during the race
Vibration motor on throttle pedal indicates rear wheel spin and oversteer (control by games is possible via Fanatec Wheel SDK)

Pure realism

Realism to the max - that's the ideology of these inverted pedals. Pivot points, arrangement, distances and overall feeling, just like in a real car!

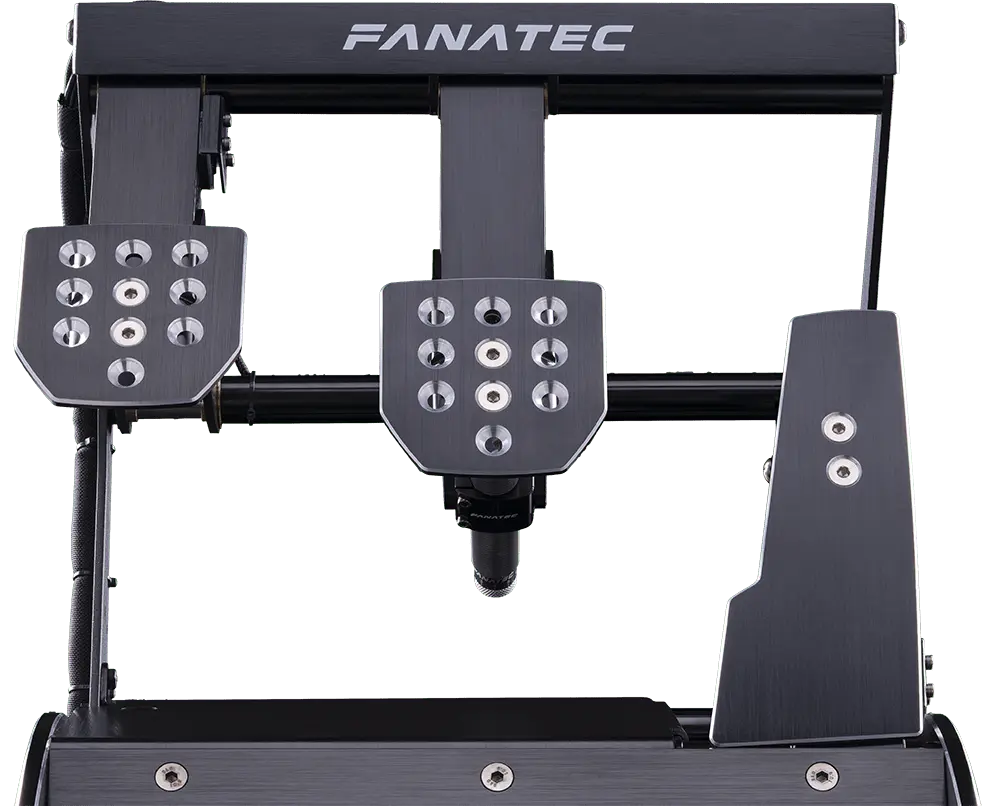

Inverted clutch and brake

The clutch and brake pivot points are inverted to the upper side of the pedals, attached to a very solid frame, just like you would expect from the Fanatec ClubSport Series. The longer pedal travels and the pedal distances are inspired by real cars in every detail.

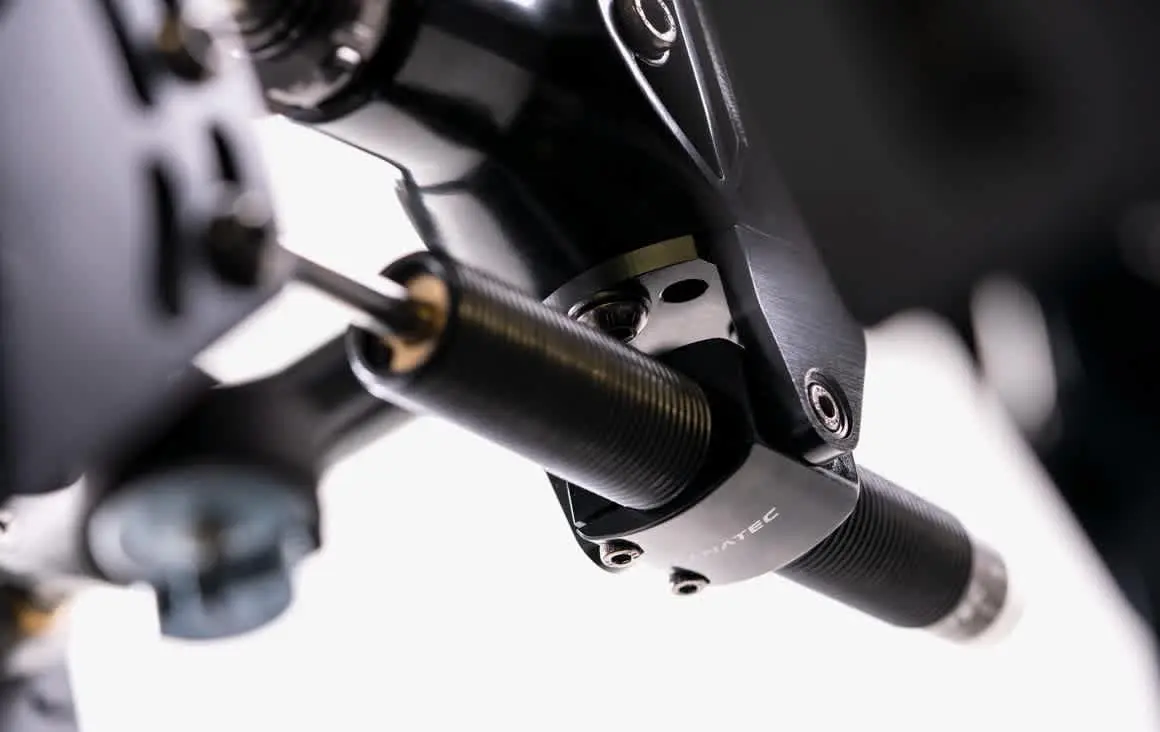

Brake pedal equipped with adjustable damper

These pedals come equipped with a resistance-adjustable ClubSport Damper Kit, mounted and ready to use on the brake pedal. In combination with the tool-less adjustment of the brake resistance (as in the V3 pedals) this pedal set delivers pure realism right out of the box!

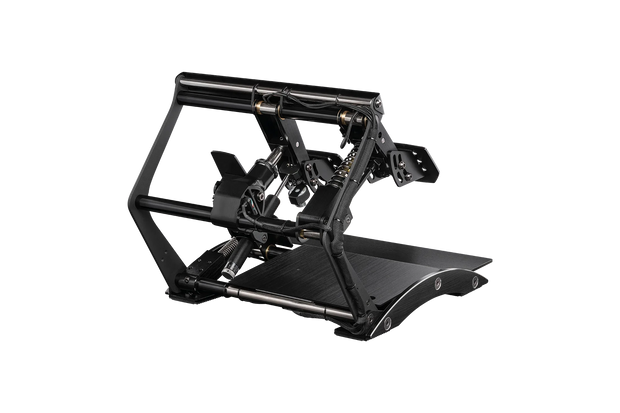

Proven design

Full metal construction with cutting-edge features, just like the ClubSport Pedals V3 and its predecessors.

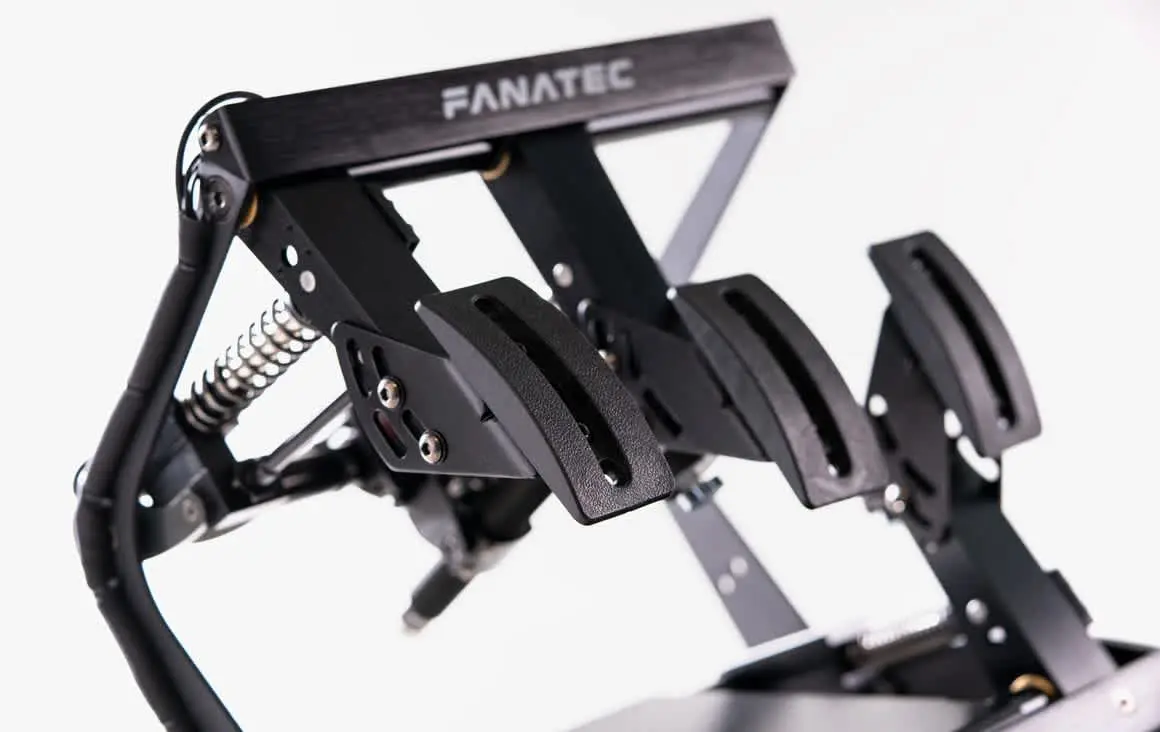

Maximum adjustability

The pre-mounted setup delivers a realistic feel, and the variety of possible arrangements via the pedal extensions and the swappable D-shape pedal plates allows for ergonomic adjustments to fit your driving style.

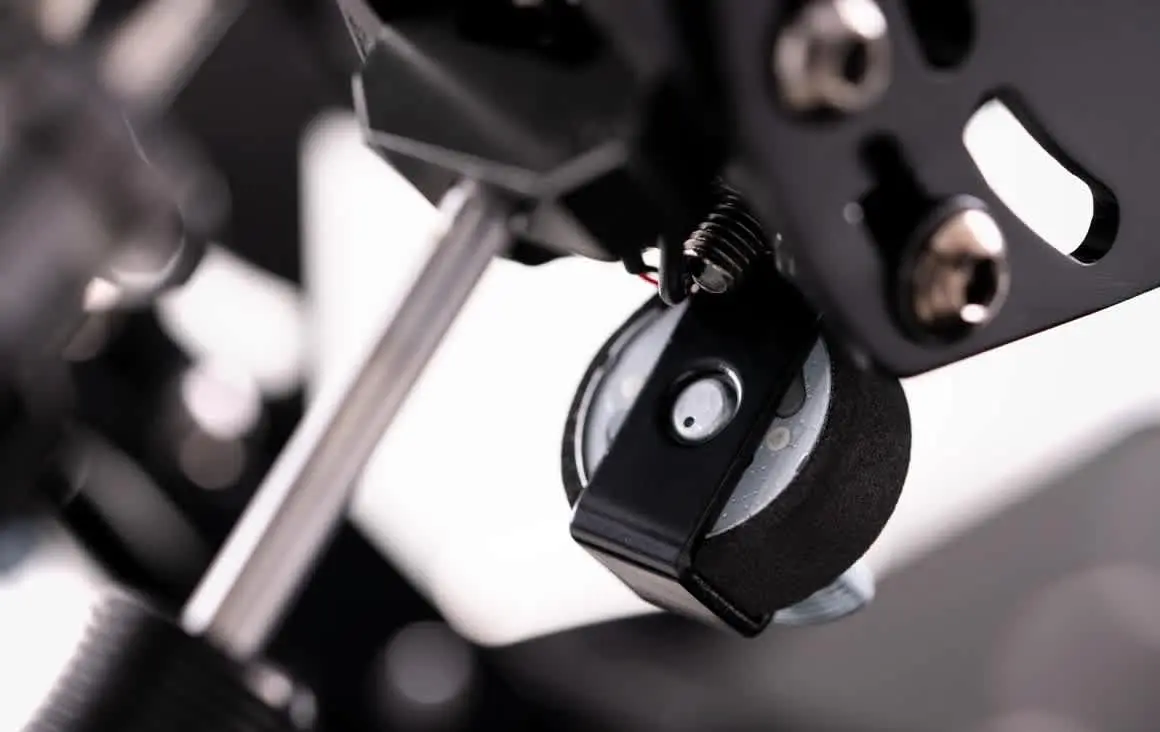

Vibration feedback pedals

The new vibration motor on the gas pedal can be used by games to indicate if you lose grip and should let up on the gas. The second motor on the brake can trigger if you brake too hard and lock the tires, or when the ABS kicks in.

Product Series: ClubSport
Platform: PC, PlayStation Ready, Xbox Ready

Platform Compatibility PC:

If you connect it to a Fanatec Wheel Base / Racing Wheel, it will be compatible to all racing games. For more information, check the compatibility details on the product page of the connected product.

It will work with any racing wheel, also of any other brand (Logitech, Thrustmaster, etc), if the pedals are connected to PC via USB and if the game supports a second controller. These PC games support a second USB controller:

iRacing
Assetto Corsa
Project Cars
GTR 2
Race 07
rFactor
Live for Speed
...and many others
Consoles: This pedal set can be used on gaming consoles, if connected through a Fanatec Wheel Base / Racing Wheel. Further information can be found on the Fanatec Wheel Base / Racing Wheel product pages. It will not work on consoles using the direct USB Connection or a ClubSport USB Adapter.

Peripheral Compatibility

Compatible with any Fanatec Wheel Base or Fanatec Racing Wheel with RJ12 Pedals connector. To connect Fanatec Wheels with PS/2 Pedal Socket, you need the additional PS/2 to RJ12 cable.
Compatible with ClubSport Pedals V3 Brake Performance Kit
Compatible with ClubSport Pedals V3 Damper Kit (Throttle Pedal)
Dedicated plug for the ClubSport Handbrake
The pedals are not compatible with the ClubSport USB Adapter. Please use the included USB connector (PC only).

ClubSport Pedals V3 inverted
ClubSport Pedals V3i Damper Kit (pre-assembled on brake pedal)
3x Pedal Extensions (2x assembled, 1x accessory)
3x D-shape pedal plates incl. mounting screws
1x Strong spring throttle
2x Stabilizer feet incl. mounting screws
1x RJ12 connection cable (150cm)
1x USB connection cable (180cm)
1x Allen Key for damper
1x Lithium grease bottle
1x Quick Guide

Pagnian proudly supplies Fanatec products and provides warranty coverage in line with the official Fanatec manufacturer’s warranty guidelines. All Fanatec products purchased from Pagnian are covered by a 3-year warranty from the date of purchase, protecting you against defects in materials and workmanship under normal intended use.

This warranty reflects the supplier’s conditions and applies only to products purchased through authorised channels. It does not cover damage caused by misuse, improper installation, unauthorised modifications, normal wear and tear, or use outside of the manufacturer’s intended purpose.
